Round Small Transformer Tank Body Making Machine 1220mm

Name: Round Small Transformer Tank Body Making Machine 1220mm
Brand: GREMET
Price: 1 USD

Quality Round Small Transformer Tank Body Making Machine 1220mm for sale

Brand Name : GREMET

Model Number : 1220

Certification : CE,ISO

Place of Origin : CHINA

MOQ : set

Price : RMB or USD

Payment Terms : T/T, L/C

Delivery Time : 30 DAYS

tranformer tank body diameter range : 310-655mm

tank thickness : 1.9mm,2.4mm, 3 mm for mild steel, 2.5mm for stainless steel

tank height and length range : 500mm-1220mm

function : all the machines are used to make the transformer tank body

Contact Now

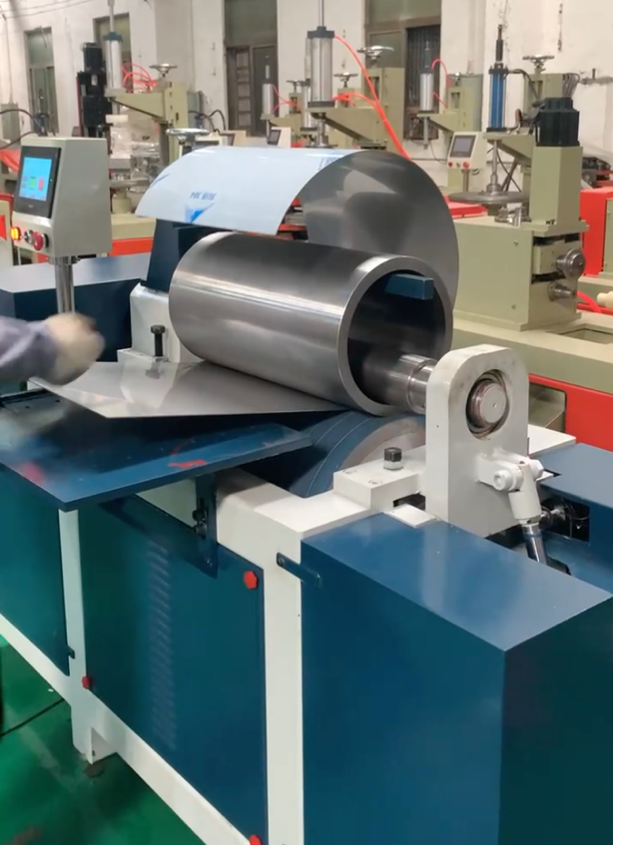

Machine 1: machine with Φ 310 mold, machine weight is 1000kgs. size: 1300x1200x700

This machine is to roll the sheet into round for tansformer body.

Round Small Transformer Tank Body Making Machine 1220mm

Material thickness: mild steel 1.9,2.4,and 3 mm

Stainless steel 2.5 mm

Material diameter: diameter range: from. 310 mm to 655 mm

Tank height/length: height range: from. 500 mm to 1220 mm

Machine 2 machine with welding source,machine weight is 200kgs, size: 1380x600x700

This machine is for welding the transformer tank/cylinder body after rolling.

Round Small Transformer Tank Body Making Machine 1220mm

Material thickness: mild steel 1.9,2.4,and 3 mm

Stainless steel 2.5 mm

Material diameter: diameter range: from. 310 mm to 655 mm

Tank height/length: height range:from. 500 mm to 1220 mm

Machine 3 machine with Φ 310 mold, machine weight is 480kgs,size: 1400x1000x2200

this machine is used to make the cover edge forming

Round Small Transformer Tank Body Making Machine 1220mm

For this cover edge forming machine:

Cover diameter range: from. 310 mm to 655 mm
Cover thickness range: mild steel 1.9,2.4,and 3 mm

Stainless steel 2.5 mm

machine 4: machine Φ 310 mold, machine weight is 880kgs. size: 1500x1200x700

Round Small Transformer Tank Body Making Machine 1220mm

Tank body edge spinning machine

tank diameter range: from. 310 mm to 655 mm
tank thickness range: mild steel 1.9,2.4,and 3 mm

Stainless steel 2.5 mm

Tank height/length: height range: from. 500 mm to 1220 mm

Machine 5 machine one mold/tooling, machine weight is 180kgs. size: 800x600x800

Round Small Transformer Tank Body Making Machine 1220mm

pre-machined length: 1012 -2115 mm
mild steel 1.9,2.4,and 3 mm

Stainless steel 2.5 mm

bent angle: 90 grades angle steel

Product Tags:

Round Small Transformer Tank

Transformer Round Tank 1220 mm

ISO mild steel Transformer Round Tank

Round Small Transformer Tank Body Making Machine 1220mm Images
